Photo 1 / 12

Full specifications

MakeCaterpillar
Model815K
Year2020
Serial NumberCAT0815KCT1Y00185
Hours3,661 hrs
Engine MakeCaterpillar
Operating Weight49,353 lb
Drum Width3' 4"
Net Power248 hp
Ground Clearance1' 3"

Manufacturer specifications

Engine

Engine ModelCat C7.1 ACERT: configured for two emissions options

Transmission

Transmission TypePlanetary Powershift ECPC

Dimensions (Approximate)

Ground Clearance - Bumper2' 2"
Height - Top Of Beacon12' 11"
Height - Top Of Cab Roof12'
Height - Top Of Exhaust Pipe11'
Height - Top Of Hood8' 5"
Hitch To Centerline Of Front Axle5' 6"
Length - With Blade On Ground23' 6"
Width - Over Wheels10' 8"
Wheel Base11'
Centerline Of Rear Axle To Bumper6' 6"
Turning Radius - Inside Of Push Arms8' 3"

Operating Specifications

Maximum Operating Weight (Tier 4 Final/Stage Iv)49,353 lb

Engine

Displacement427.8 cu in
EmissionsMeets U.S. EPA Tier 4 Final/EU Stage IV emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards
Rated Power (Sae J1349) - Tier 4 Final/Stage Iv248 hp
Rated Power (Net Iso 9249) - Tier 4 Final/Stage Iv248 hp
Maximum Net Torque - 1,400 Rpm - Tier 4 Final/Stage Iv899 lb ft
Gross Power - Sae J1995 - Tier 4 Final/Stage Iv284 hp
Gross Power - Iso 14396 - Tier 4 Final/Stage Iv274 hp
High Idle Speed2,270 rpm
Low Idle Speed800 rpm
Torque Rise - Tier 4 Final/Stage Iv52%
Maximum Altitude - Without Derating9,842' 7"

Transmission

Travel Speeds - Forward - First4.2 mph
Travel Speeds - Forward - Second7.5 mph
Travel Speeds - Reverse - First4.8 mph
Travel Speeds - Reverse - Second8.5 mph
Travel Speeds - Forward - Third13.2 mph
Travel Speeds - Reverse - Third15 mph

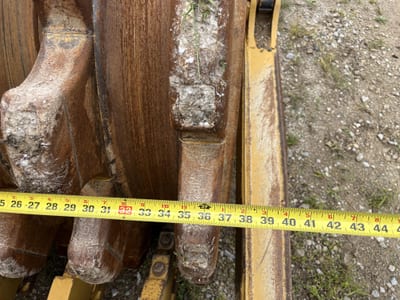

Wheels

Outside Diameter4' 8"
Drum Diameter3' 5"
Tips Per Wheel60
Weight9,720 lb
Width - Over Drums10' 8"

Axles

FrontPlanetary Fixed
RearPlanetary Oscillating
Oscillation Angle10 degrees

Hydraulic System

Maximum Supply Pressure2930 psi
Main Relief Pressure3190 psi
Pump Flow At 2,111 Rpm23.5 gal/min
Lift Cylinder, Double Acting - Bore And Stroke101.6 mm 627 mm (4 in 24.7 in)
Tilt Cylinder, Double Acting - Bore And Stroke101.6 mm 167 mm (4 in 6.6 in)

Brakes

Parking BrakeDrum and Shoe, Spring Applied, Hydraulic Released

Service Refill Capacities

Fuel Tank132.1 gal
Engine Crankcase5.3 gal
Transmission14.8 gal
Differential - Final Drives - Front17.2 gal
Differential - Final Drives - Rear17.2 gal
Cooling System - Tier 4 Final/Stage Iv21.4 gal
Diesel Exhaust Fluid Tank (Tier 4 Final/Stage Iv Only)4.2 gal
Hydraulic Tank Only19.8 gal
Cooling System - Tier 3/Stage Iiia Equivalent19.3 gal

Hydraulic System - Steering

Steering System - CircuitClosed Center Load Sensing
Steering System - PumpPiston Variable Displacement
Steering Pressure Limited4003 psi
Maximum System Flow147 L/min @ 2,111 rpm (38.8 gal/min @ 2,111 rpm)
Vehicle Articulation Angle84 degrees

Blades

Height - Including Cutting Edge2' 11"
Maximum Depth Of Cut0' 10"
Maximum Lift Above Ground2' 8"
Width - Over End Bits12' 5"
Blade Tilt Angle - Right - Hydraulic4.8 degrees
Blade Tilt Angle - Left - Hydraulic5.5 degrees
Blade Tilt Adjustment - Right1'
Blade Tilt Adjustment - Left1' 2"
Total Tilt Adjustment2' 2"
Width - Moldboard Length12'

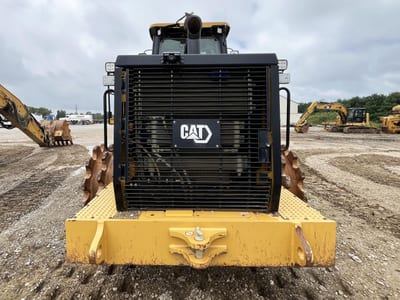

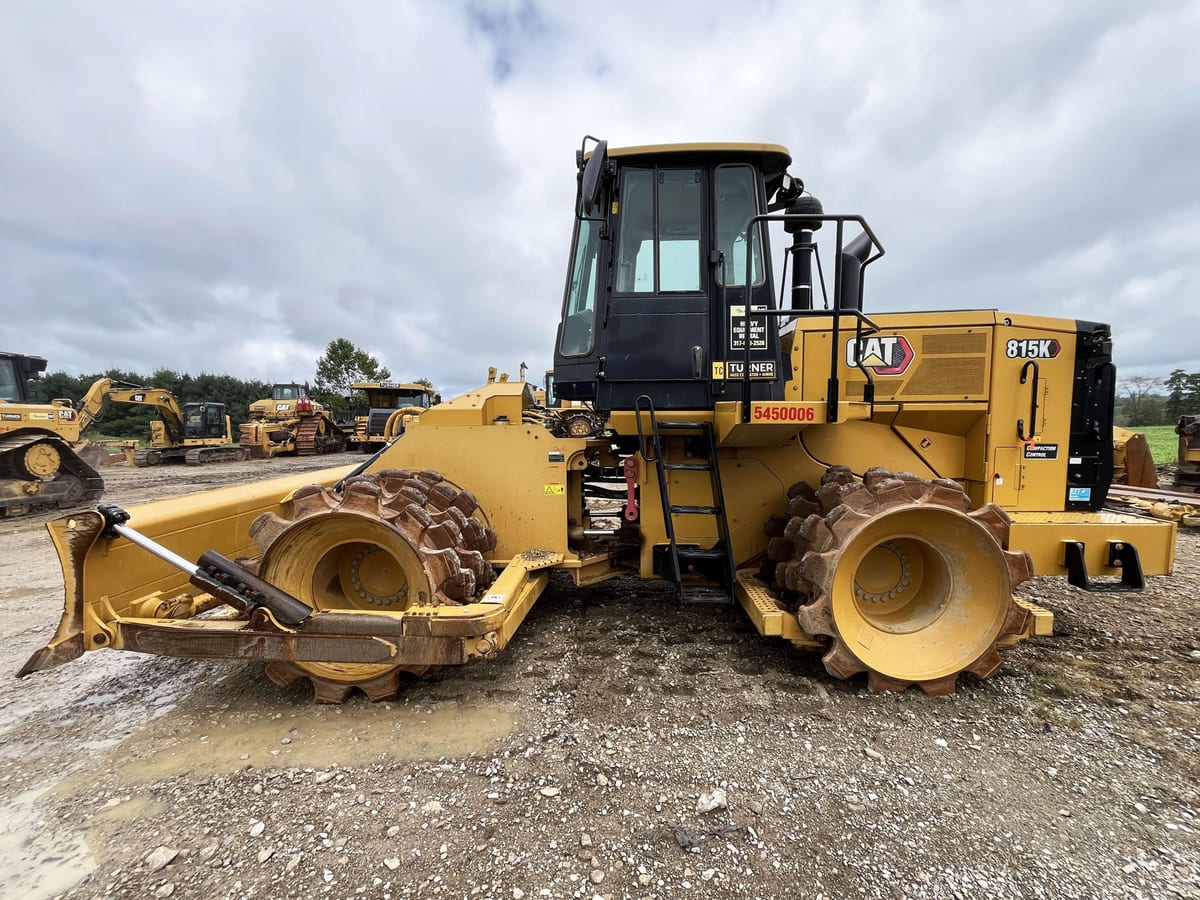

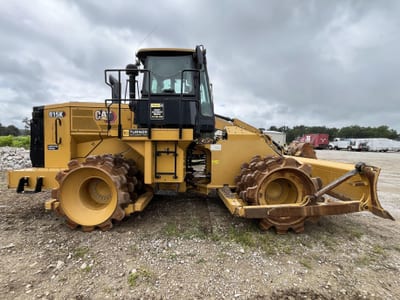

2020 CATERPILLAR 815K PADFOOT COMPACTOR

$24,200

or as low as $442/mo with financing*
Description

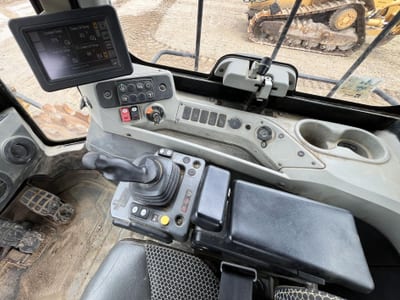

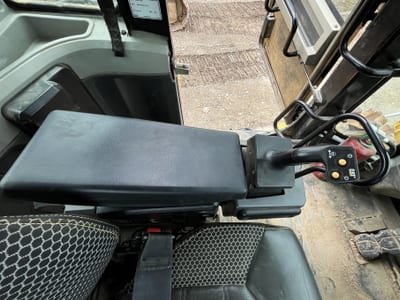

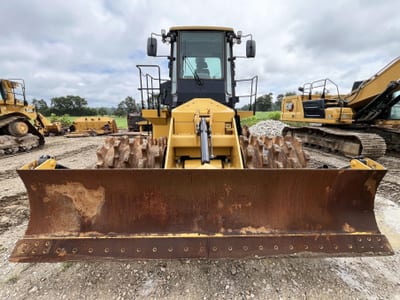

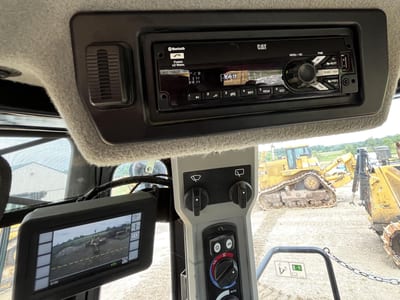

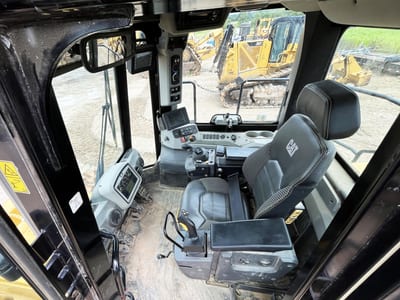

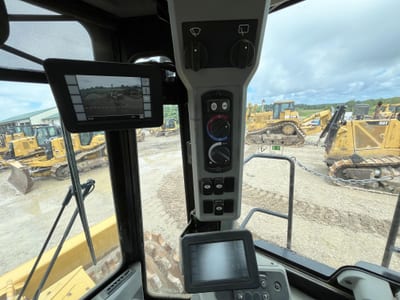

2020 CATERPILLAR 815K PADFOOT COMPACTOR: CAB, A/C, CAT C7.1 DIESEL ENGINE, JOYSTICK CNTRLS, LEVELING BLADE W/ TILT, REVERSE CAMERA LOCATED IN INDIANA CALL FOR MORE PHOTOS AND CURRENT HOURS

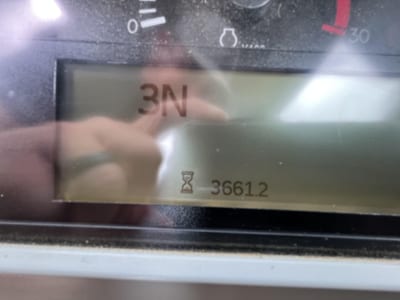

Meter (hours)
3,661 hrs
Location
Bedford, IN
