Photo 1 / 33

Full specifications

MakeCaterpillar
Model745C
Year2015
Serial NumberCAT0745CKTFK00447
Hours7,686 hrs
Engine MakeCaterpillar
Gross Power511 hp
Fuel Capacity145.3 gal
Net Power496 hp
Front Axle - Empty43,585 lb
Rear Axle - Empty14,749 lb
Rear Axle - Loaded53,440 lb
Rated Payload90,400 lb

Manufacturer specifications

Dump

Capacity - Heaped32.71 yd3
Capacity - Struck24.2 yd3

Engine

Torque Measured @1,200 rpm
Displacement1,106 cu in
Bore5.7 in
Stroke7.2 in
Net Power - Sae J1349496 hp
Gross Power - Sae J1995511 hp
Net Power - Iso 14396504 hp
No Engine De-Rating Required Below10,000'
Peak Engine Torque Gross (Sae J1995)1,931 lb ft
Peak Engine Torque Speed1,200 rpm
Peak Engine Torque Net (Sae J1349)1,887 lb ft
Engine Model - U.S. Epa Tier 4 Final/Eu Stage Iv/Japan 2014 (Tier 4 Final)/Korea Tier 4 FinalCat C18 ACERT

Operational

Hydraulic System Fluid Capacity36.9 gal
Cooling System Fluid Capacity23.7 gal
Transmission Fluid Capacity19.8 gal

Transmission

Number Of Forward Gears9
Number Of Reverse Gears2
Forward - 13.8 mph
Forward - 25 mph
Forward - 37 mph
Forward - 48.8 mph
Forward - 511.6 mph
Forward - 614.2 mph
Forward - 719.6 mph
Reverse - 14 mph
Reverse - 29.1 mph

Steering

Lock To Lock4.8 seconds @ 60 rpm

Transmission

Forward - 823.5 mph
Forward - 934 mph

Weights

Total Empty73,634 lb

Service Refill Capacities

Cooling System23.7 gal
Fuel Tank145.3 gal
Def Tank6.6 gal
Final Drive - Each1.3 gal
Engine Crankcase13.7 gal
Brake Cooling Tank17.7 gal
Steering/Hoist Hydraulic System36.9 gal
Transmission - Otg19.8 gal
Axles - Each15.8 gal

Standards

Cab - FopsISO 3449 Level II 2005
Cab - RopsISO 3471 2008
BrakesISO 3450 2011
SteeringISO 5010 2007

Operating Weights

Front Axle - Rated Load13,007 lb
Center Axle - Rated Load38,691 lb
Rear Axle - Rated Load38,691 lb
Total - Rated Load90,389 lb

Sound Levels

Interior Cab79 dB(A)

Turning Circle

NoteDimensions are for machines equipped with 29.5R25 tires.
Turning Dimensions - Sae Turning Radius340 in
Turning Dimensions - Clearance Radius358 in
Turning Dimensions - Inside Radius174 in
Turning Dimensions - Aisle Width235 in

Body Capacities

Heaped (Sae 2:1)32.7 yd3
Struck24.2 yd3
Tailgate Struck25.5 yd3
Tailgate Heaped Sae 2:134.7 yd3

Body Plate

Body Plate TypeHigh strength Brinell HB450 wear resistant steel

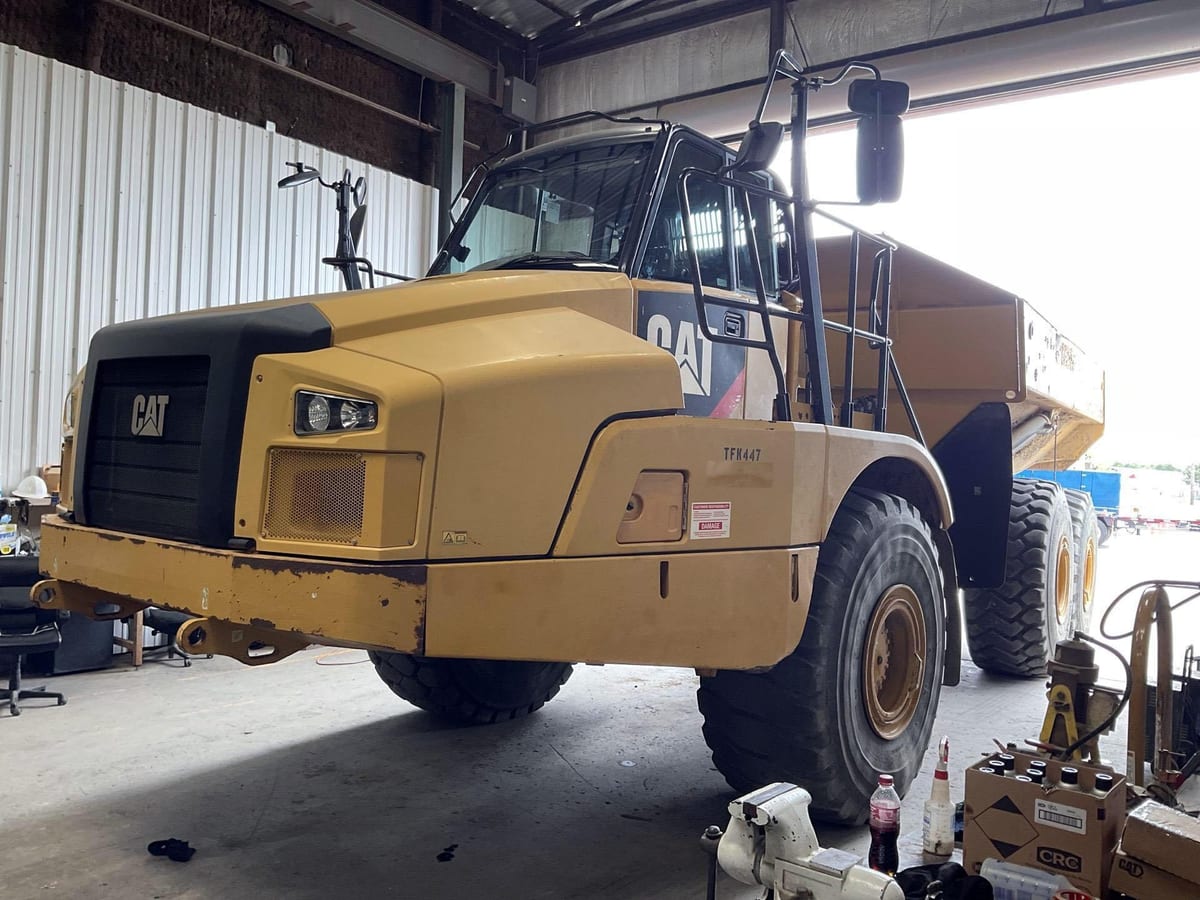

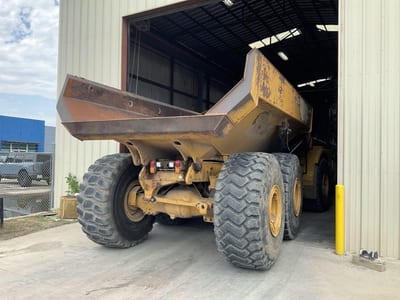

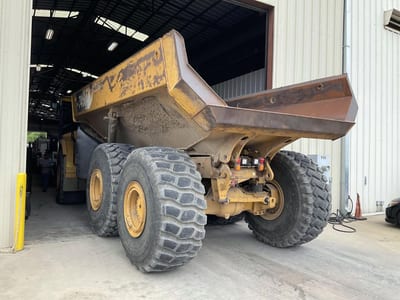

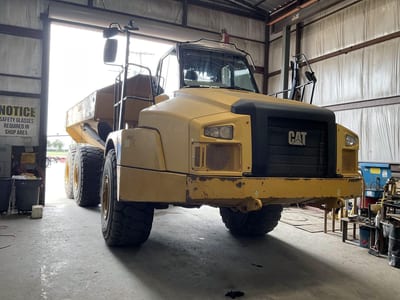

2015 CATERPILLAR 745C ARTICULATED DUMP TRUCK

$178,200

or as low as $3,252/mo with financing*
Description

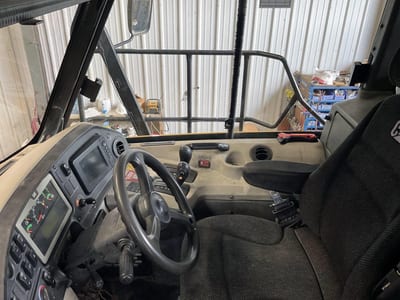

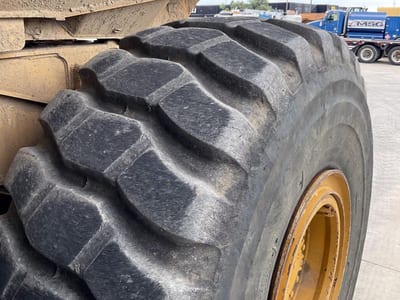

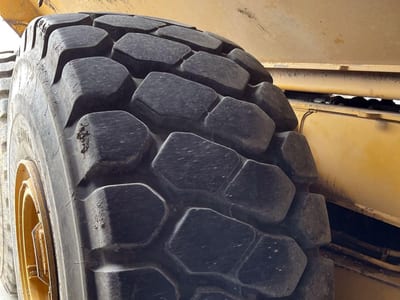

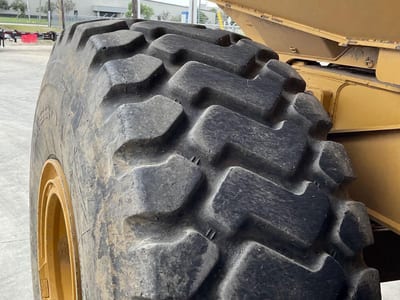

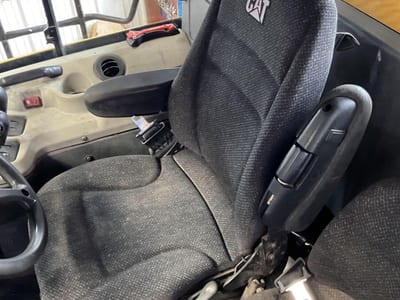

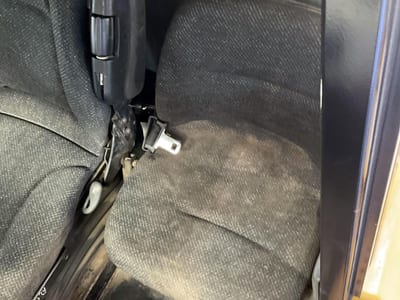

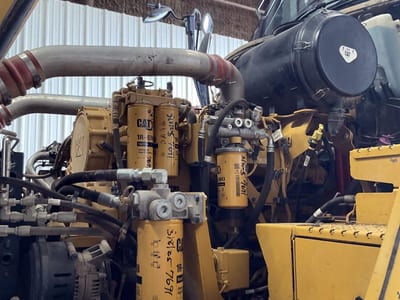

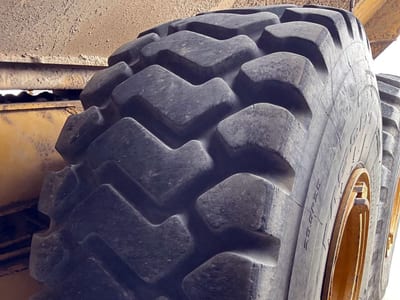

2015 CATERPILLAR 745C ARTICULATED OFF HIGHWAY DUMP TRUCK: CAB, A/C, 6X6, CAT C-18 DIESEL ENGINE, ENGINE RETARDER, 29.5-R25 TIRES LOCATED IN TEXAS CALL FOR MORE PHOTOS AND CURRENT HOURS

Meter (hours)
7,686 hrs
Location
Princeton, TX
