| Year | 2011 | |
| Make | Caterpillar | |
| Model | 990H | |
| Serial Number | CAT0990HABWX00526 | |

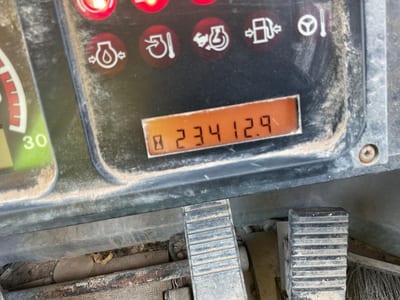

| Hours | 23,412 hrs | |
| Operating Weight | 171,612.3 lb | |
| Net Power | 627 hp | |
| Loader Type | Wheel | |
| Transmission Type | Powershift | |
| Max Speed - Forward | 14 mph | |
| Tire Size | 41.25/70-39 | |
| Pump Flow Capacity | 171.8 gal/min | |
| Engine Make | Caterpillar | |
| Fuel Capacity | 283.8 gal | |
| Ground Clearance | 1' 7" |
| Gross Power | 687 hp | |
| Power Measured @ | 2,000 rpm | |
| Displacement | 1,666 cu in | |
| Bore | 5.4 in | |
| Stroke | 6 in | |
| Net Power - Sae J1349 | 621 hp | |
| Net Power - Iso 14396 | 669 hp | |
| Net Power - Din 70020 | 650 PS |
| Static Tipping Weight | 95,663 lb | |
| Rear Axle Oscillation | 22 degrees | |
| Hydraulic System Fluid Capacity | 115 gal | |
| Engine Oil Fluid Capacity | 25.1 gal | |
| Cooling System Fluid Capacity | 50.2 gal | |
| Transmission Fluid Capacity | 29.1 gal | |
| Front Axle/Diff Fluid Capacity | 71.6 gal | |
| Rear Axle/Diff Fluid Capacity | 69 gal | |
| Turning Radius | 34' | |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 100 amps |
| Dump Time | 2.9 sec | |
| Raise Time | 9.2 sec | |
| Lower Time | 3.8 sec |
| Rated Payload | 33,000 lb |
| Dump Clearance At Max Raise | 13' | |
| Bucket Capacity - Heaped | 11.25 yd3 | |
| Bucket Capacity - Struck | 9.55 yd3 | |
| Bucket Width | 14' 7" | |
| Breakout Force | _ |
| Length With Bucket On Ground | 42' 2" | |
| Width Over Tires | 13' 4" | |
| Hinge Pin - Max Height | 19' 3" | |
| Reach At Max Lift And Dump | 5' 11" |
| Number Of Forward Gears | 3 | |
| Number Of Reverse Gears | 3 | |
| Forward - 1 | 4.4 mph | |
| Forward - 2 | 8 mph | |
| Forward - 3 | 14 mph | |
| Reverse - 1 | 5 mph | |
| Reverse - 2 | 8.8 mph | |
| Direct Drive - Forward 3 | 13.9 mph | |
| Direct Drive - Reverse 3 | 15.4 mph | |
| Direct Drive - Forward 2 | 7.9 mph | |
| Direct Drive - Reverse 2 | 8.8 mph | |
| Converter Drive - Forward 3 | 12.9 mph | |
| Converter Drive - Reverse 3 | 14.2 mph | |
| Direct Drive - Forward 1 | Lock-up disabled | |
| Converter Drive - Forward 1 | 4.3 mph | |
| Converter Drive - Forward 2 | 7.5 mph | |
| Direct Drive - Reverse 1 | 4.9 mph | |
| Converter Drive - Reverse 1 | 4.8 mph | |
| Converter Drive - Reverse 2 | 8.3 mph | |
| Reverse - 3 | 15.5 mph |
| Steering Angle - Each Direction | 35 degrees | |
| Minimum Turning Radius - Over Bucket | 407 in | |
| Hydraulic Output At 2,128 Rpm And 6900 Kpa (1,000 Psi) | 108 gal/min | |
| Minimum Turning Radius - Over Bucket - Hl | 424 in |
| Tires | Tires used for measurement - 41.25/70-39 42 ply |
| Bucket Capacities | 8.4 m3-9.2 m3 (11 yd3-12 yd3) |
| Front | Fixed | |
| Rear | Oscillating | |
| Oscillation Angle | 11 degrees | |
| Maximum Single-Wheel Rise And Fall | 22.5 in |
| Brakes | Meet SAE/ISO 3450 1996 |
| Cooling System | 50.2 gal | |
| Fuel Tank | 284 gal | |
| Crankcase | 25 gal | |
| Hydraulic System - Including Tank | 115 gal | |
| Transmission | 29 gal | |
| Differential - Final Drives - Front | 71.6 gal | |
| Differential - Final Drives - Rear | 68.9 gal | |
| Hydraulic System - Tank Only | 46 gal | |
| Hydraulic System - Lift/Tilt And Brakes | 113 gal | |
| Hydraulic System - Steering And Engine Cooling Fan | 50.5 gal |
| Raise | 9.2 s | |
| Dump | 2.9 s | |
| Total Hydraulic Cycle Time | 15.9 s | |
| Lower Float Down - Empty | 3.8 s |
| Cab - Rops/Fops | Meets SAE and ISO standards | |
| Sound Performance | Sound Performance Meets ANSI, SAE and ISO standards |
| Pilot System, Gear-Type Pump Output At 2,000 Rpm And 6900 Kpa (1,000 Psi) | 12 gal/min | |
| Main Hydraulic System Output At 2,128 Rpm And 6900 Kpa (1,000 Psi) | 172 gal/min | |
| Cylinders, Double Acting - Lift, Bore And Stroke | 234 mm 1270 mm (9.25 in 50 in) | |
| Cylinders, Double Acting - Tilt, Bore And Stroke | 292 mm 820 mm (11.5 in 32.3 in) | |
| Relief Valve Setting - Low Idle | 350 psi |
| Wheelbase | 15' 1" | |
| Height To Top Of Cab | 16' 8" |
$246,675

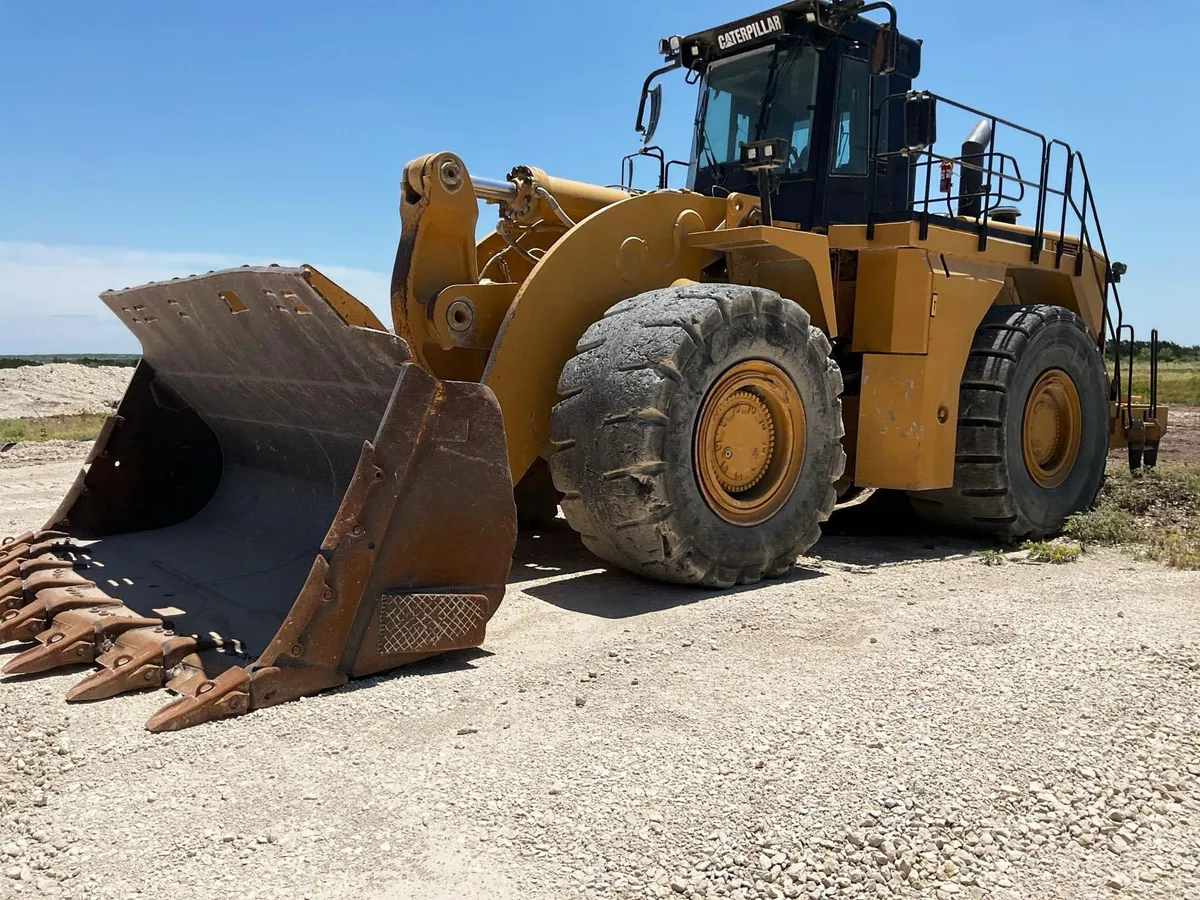

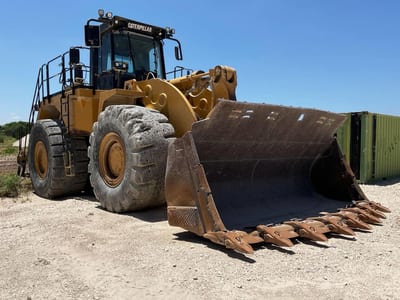

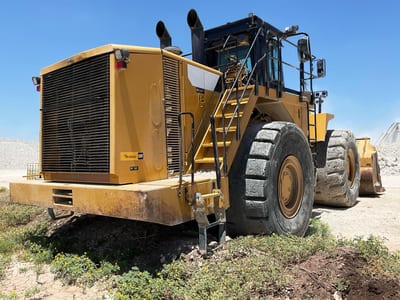

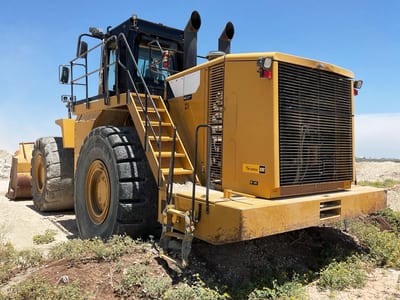

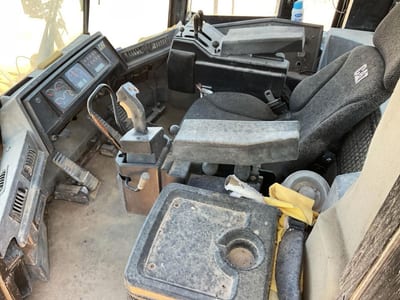

or as low as $4,502/mo with financing*2011 CATERPILLAR 990H WHEEL LOADER: CAB, A/C, CAT C27 DIESEL ENGINE, JOYSTICK STEERING, LEVER BKT CNTRLS, SPADE NOSE BKT CAT CERTIFIED POWERTRAIN REBUILD @ 17,800 HOURS: ENGINE AND TRANSMISSION LOCATED IN TEXAS CALL FOR MORE PHOTOS AND CURRENT HOURS
Contact: Paul Williamson
