Photo 1 / 40

Full specifications

MakeCaterpillar
Model352F
Year2017
Serial NumberCAT0352FPA9J10015
Hours9,572 hrs
Operating Weight115,700 lb
Engine MakeCaterpillar

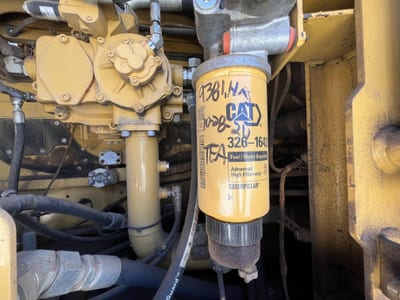

Engine ModelCat C13 ACERT

Manufacturer specifications

Swing Mechanism

Swing Speed8.7 rpm

Drive

Maximum Travel Speed2.9 mph

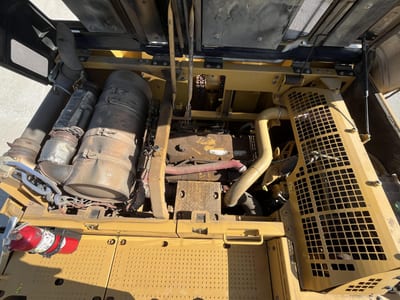

Engine

Displacement763 cu in
Bore5.2 in
Stroke6.2 in
Net Power - Sae J1349417 hp
Gross Power - Sae J1995432 hp
Net Flywheel Power396 hp

Swing Mechanism

Swing Torque109,500 lb ft

Weights

Maximum Weight115,700 lb

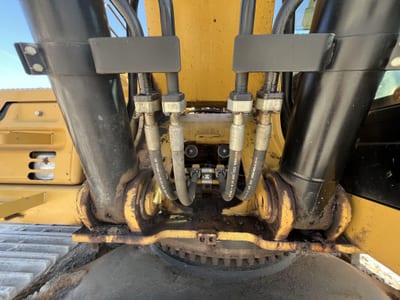

Hydraulic System

Pilot System - Maximum Flow7.1 gal/min
Pilot System - Maximum Pressure598 psi
Maximum Pressure - Travel5076 psi
Maximum Pressure - Swing3989 psi
Swing System - Maximum Flow102 gal/min

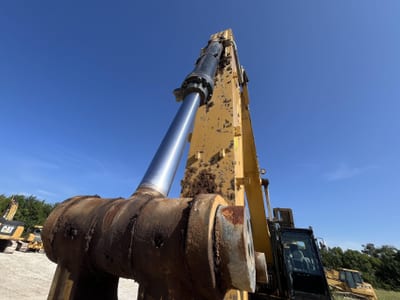

Boom Cylinder - Bore6.7 in
Boom Cylinder - Stroke60 in
Stick Cylinder - Bore7.5 in
Stick Cylinder - Stroke69.3 in
Main System - Maximum Flow - Total203 gal/min
Maximum Pressure - Equipment5076 psi
Maximum Pressure - Equipment - Lift Mode5512 psi
Tb Family Bucket Cylinder - Stroke53.4 in
Tb Family Bucket Cylinder - Bore6.3 in

Service Refill Capacities

Cooling System13.2 gal
Def Tank11 gal

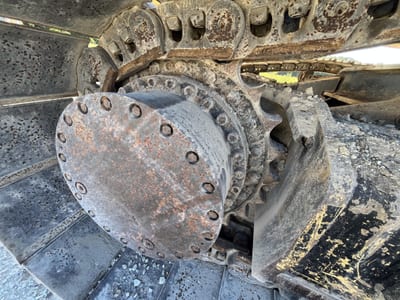

Final Drive - Each4 gal
Hydraulic Tank107.5 gal
Hydraulic System - Including Tank150.6 gal
Fuel Tank Capacity190 gal
Swing Drive - Each2.6 gal
Engine Oil - With Filter10 gal

Standards

Cab - RopsISO 12117-2
BrakesISO 10265
Cab/FogsSAE J1356

Sound Performance

Operator Noise (Closed) - Iso 639669 dB(A)
Spectator Noise - Iso 6395106 dB(A)

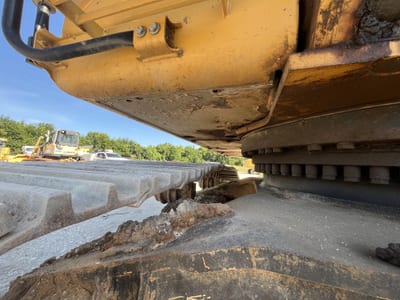

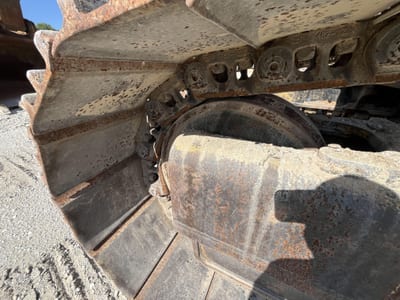

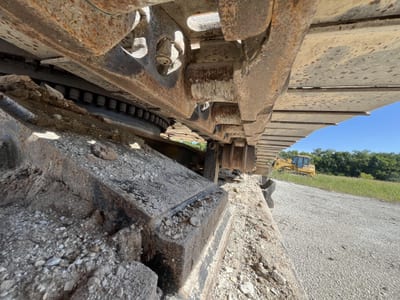

Track

Number Of Shoes - Each Side - Long Variable Gauge Undercarriage52
Number Of Track Rollers - Each Side - Long Variable Gauge Undercarriage9
Number Of Carrier Rollers - Each Side - Long Variable Gauge Undercarriage3

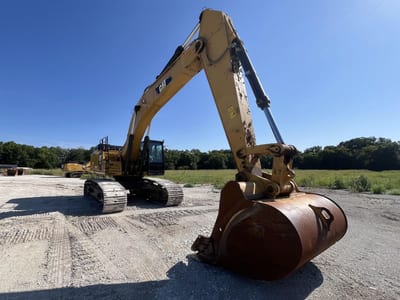

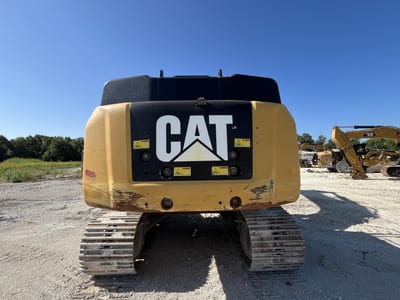

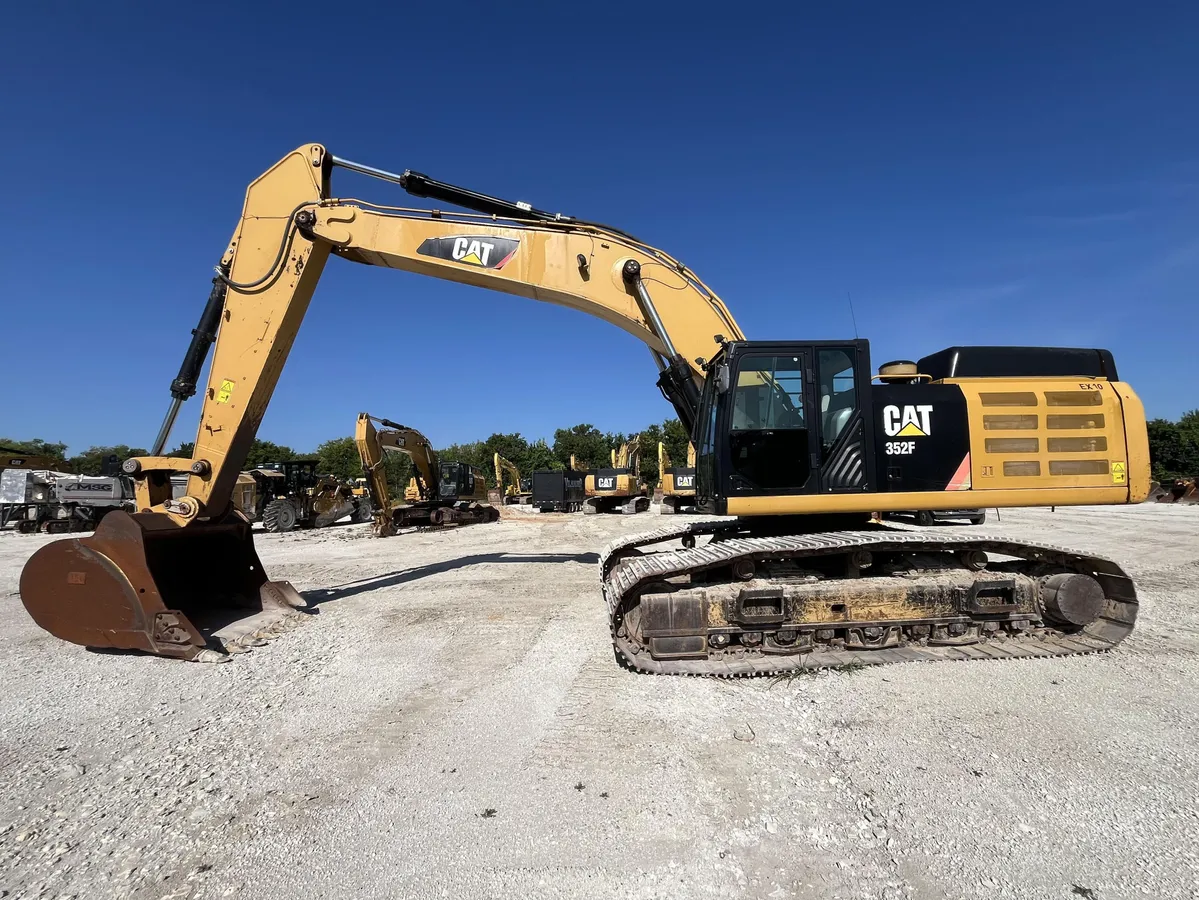

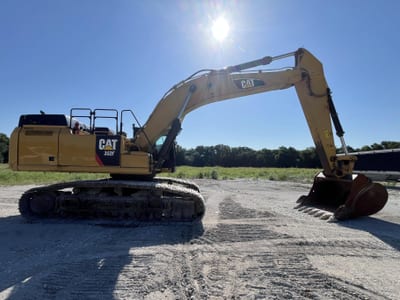

2017 CATERPILLAR 352F CRAWLER EXCAVATOR

$244,200

or as low as $4,456/mo with financing*
Description

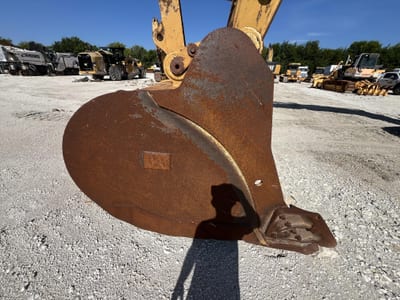

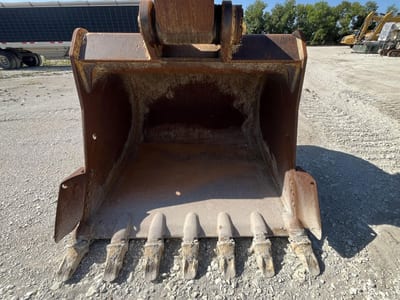

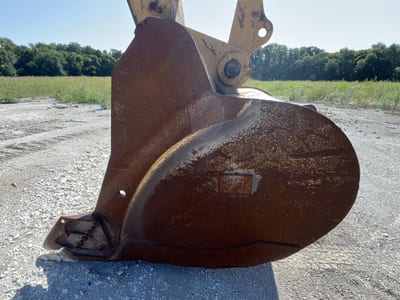

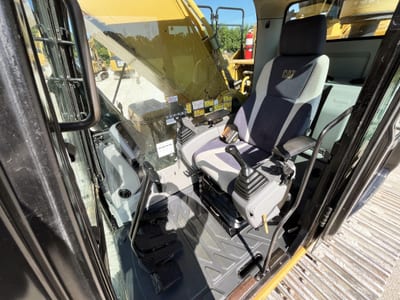

2017 CATERPILLAR 352F CRAWLER EXCAVATOR: CAB, A/C, CAT C-13 DIESEL ENGINE, 35.5" TBG, WITH CAT 76" GP BKT LOCATED IN TEXAS CALL FOR MORE PHOTOS AND CURRENT PICTURES

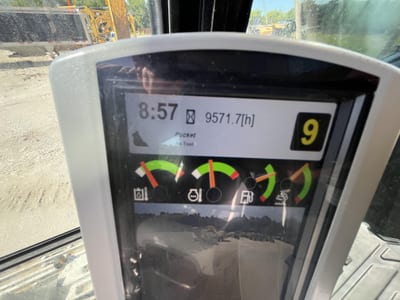

Meter (hours)
9,572 hrs
Location
Princeton, TX

Ask the seller

Equify Financial

Contact: Paul Williamson

Call the seller: (214) 949-5242

Estimate financing

$4,456/mo

Down payment (10%)$24,420
Term60 months
Est. APR8%
Apply for Financing (opens in a new tab)

*Estimate only. On approved credit. Not a financing offer.

Payment terms

Equify Financial's Payment Terms

  • All payments must be made via wire transfer. Instructions will be provided upon acceptance of your offer.

  • A $75.00 administrative fee will be applied to each titled item purchased.

    • Transferable titles will be sent to buyers via express mail or a similar service within 15 business days after full payment is received. Buyers are responsible for vehicle registration in their respective states or jurisdictions.

  • Full payment, including any applicable taxes and fees, is due within 3 business days of offer acceptance.

    • Partial payments are not accepted.

    • Failure to pay within this timeframe may result in cancellation of your offer. The item may then be returned to inventory or sold to another buyer.
