Full specifications
| Make | Caterpillar | |
| Model | 336 | |
| Year | 2020 | |

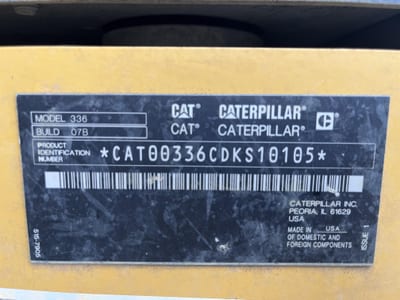

| Serial Number | CAT00336CDKS10105 | |

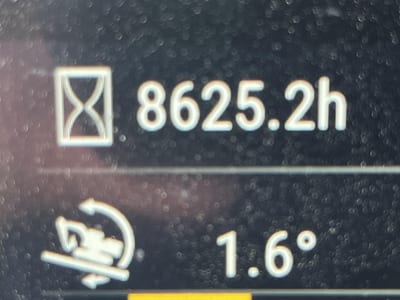

| Hours | 8,625 hrs | |
| Operating Weight | 81,900 lb | |
| Engine Make | Caterpillar | |
| Engine Model | C9.3B | |
| Quick Coupler | Yes | |
| Auxiliary Hydraulics | Yes | |
| Ground Clearance | 1' 8" |
Manufacturer specifications
Swing
| Swing Speed | 8.8 rpm |
Dimensions - Reach Boom - 6.5 M (21'4"); R3.2db (10'6") Stick; Gdc 2.27 M3 (2.97 Yd3) Bucket
| Tail Swing Radius | 11' 7" | |
| Counterweight Clearance | 4' 1" | |
| Track Gauge | 8' 6" | |
| Track Length To Center Of Rollers | 13' 4" | |
| Transport Width - 850 Mm (33 In) Shoes | 11' 4" | |
| Handrail Height | 10' 5" | |
| Shipping Height - Top Of Cab | 10' 5" | |
| Shipping Length | 36' 9" |
Engine
| Displacement | 568 cu in | |
| Bore | 5 in | |
| Stroke | 6 in | |
| Net Power - Sae J1349 | 311 hp | |
| Gross Power - Sae J1995 | 314 hp | |
| Net Flywheel Power | 311 hp | |
| Engine Rpm - Operation | 1,800 rpm | |
| Engine Rpm - Travel | 1,550 rpm |
Weights
| Note | Long undercarriage, Reach boom, R3.9DB (12'10") stick, GD 2.27 m3 (2.97 yd3) bucket, and 850 mm (33") triple grouser shoes, 6.8 mt (14,991 lb) counterweight. |
Hydraulic System
| Maximum Pressure - Travel | 5076 psi | |
| Maximum Pressure - Swing | 4264 psi | |
| Main System - Maximum Flow - Total | 147 gal/min | |
| Maximum Pressure - Equipment - Lift Mode | 5511 psi | |
| Maximum Pressure - Equipment - Implement | 5076 psi |
Service Refill Capacities
| Cooling System | 10.5 gal | |
| Def Tank | 21.1 gal | |
| Final Drive - Each | 2.1 gal | |
| Hydraulic Tank | 40.4 gal | |
| Hydraulic System - Including Tank | 98.5 gal | |
| Fuel Tank Capacity | 158.5 gal | |
| Swing Drive - Each | 4.8 gal | |
| Engine Oil - With Filter | 8.5 gal |
Swing
| Maximum Swing Torque | 84,151 lb ft |
Working Ranges - Reach Boom - 6.5 M (21'4"); R3.2db (10'6") Stick; Gcd 2.27 M3 (2.97 Yd3) Bucket
| Bucket Digging Force - Iso | 47,160 lb ft | |
| Bucket Digging Force - Sae | 41,900 lb ft | |
| Maximum Cutting Height | 35' 2" | |
| Maximum Depth Cut For 2440 Mm (8'0") Level Bottom | 26' 5" | |
| Maximum Digging Depth | 26' 11" | |
| Maximum Loading Height | 2' 7" | |
| Maximum Reach - Ground Level | 38' 6" | |
| Maximum Vertical Wall Digging Depth | 20' 11" | |
| Minimum Loading Height | 6' 2" | |
| Stick Digging Force (Iso) | 32,400 lb ft | |
| Stick Digging Force (Sae) | 31,630 lb ft |

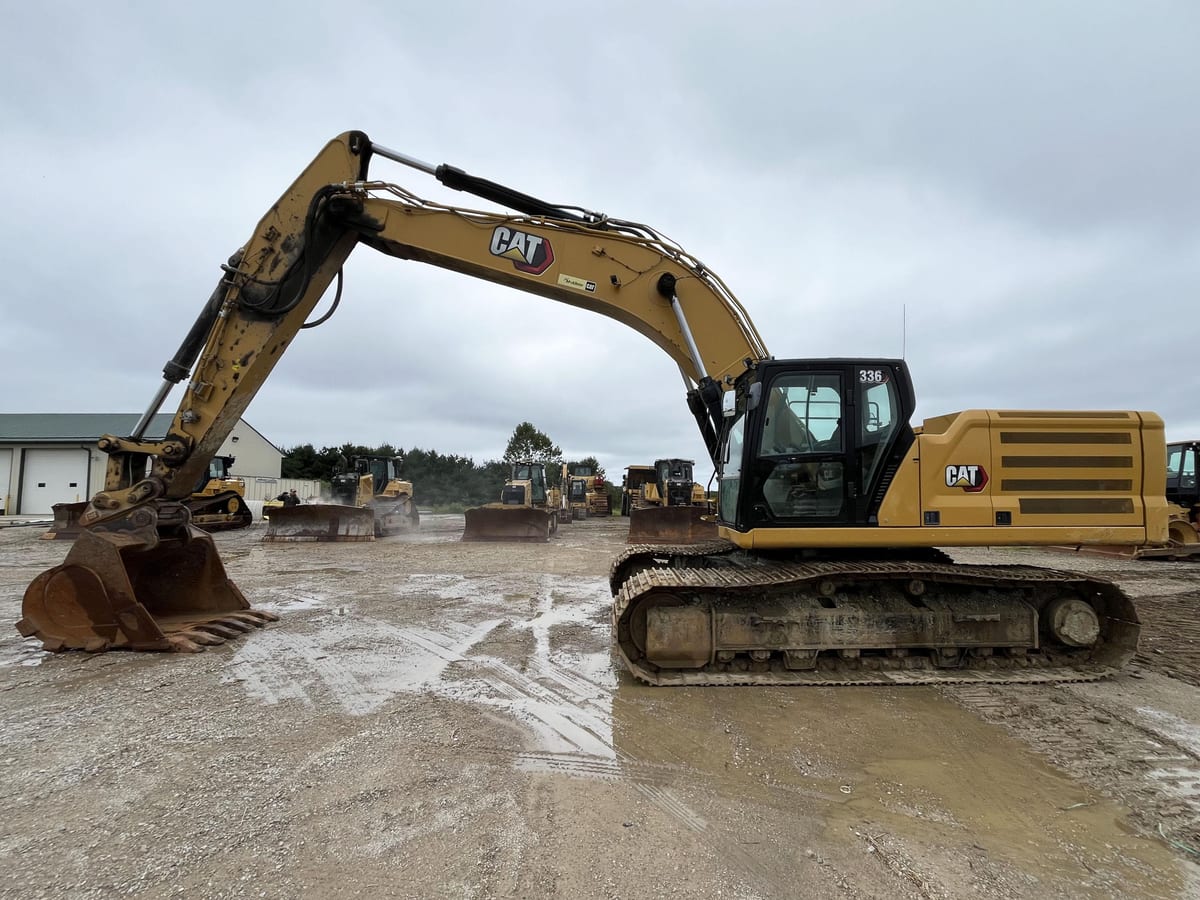

2020 CATERPILLAR 336 CRAWLER EXCAVATOR
$149,270
or as low as $2,724/mo with financing*2020 CATERPILLAR 336 CRAWLER EXCAVATOR: CAB, A/C, CAT DIESEL ENGINE, CAT QUICK COUPLER, AUX HYD, 33.5" TBG, AIM 60" GP BKT, GRADE CNTRL/GPS READY LOCATED IN INDIANA CALL FOR MORE PHOTOS AND CURRENT HOURS
- Meter (hours)
- 8,625 hrs
- Location
- Bedford, IN
Ask the seller
Contact: Paul Williamson
Estimate financing
$2,724/mo
| Down payment (10%) | $14,927 |
| Term | 60 months |
| Est. APR | 8% |
*Estimate only. On approved credit. Not a financing offer.
